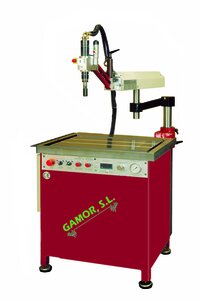

Tapping Machine MTC M45

We had accumulated a noteworthy experience in the territory of manufacturing Tapping machines. Our offered machine is designed and manufactured employing supreme quality components in line with cutting-edge technology at our well-equipped manufacturing unit. To add more, the high-precision design provides uniform and fast operations of threading. This machine is known for dimensional accuracy, high drilling strength, durability, and elevated performance also easy handle operation makes Tapping Machine widely accepted by our clients from around the country.

Tapping Capacity

Metric:M2-m45

Whitworth System:Bsw 1/8 - 1 inch 3/4

Bsp:1/8 - 2 inch1/4

Technical

Capacity:M2-m45

R.P.M.:15 To 590

Electric Motor :7.5 Hp

Voltage :380 Phase

Electronic Speed Control

Arm Length 1,000 MM

Total Coverage Table

Holders No. 3-2-1

Oil Tank 50 Gallon

Weight 570 Kg / 590 Kg

Standard Equipment

3 Articulated Arm Bars

T-slot Table 900 X 630 Mm.

Speed Drive (in Hz)

Digital (R.P.M.)

Control Turn Right And Left

Hydraulic Group

Moto-hydraulic Pump

Speed Reducer

System Security Thread

Placement For Leaders Alero

Hydraulic Pressure Gauge

Key Pressure Regulator

Key Protective Gauge

Oil Temperature Thermometer Group

Leveling Silembloc

Rail - Guide Auto compensado, High Low Thread

Screw Horizontal Mechanical Positioning.
